Magnetic particle inspection is a simple but sensitive method for detecting irregularities in the surface of ferromagnetic materials with a relative permeability µr >100, e.g. steel, cast iron, cobalt, nickel. Inhomogeneities close to the surface can also be detected. The depth of detectable indications depends on the field used:

Field max. depth of indication
Alternating field 1 mm - 2 mm
DC field 2 mm - 3 mm

Surface crack inspection with the fluorescent magnetic particle testing - the crack indication is clearly visible under UV irradiation

Weld seam testing with the magnetic particle testing with coloured (here black) suspension and white background colour (black-white method)

During magnetisation of the ferromagnetic material, leak fluxes occur over material separations (e.g. cracks, pores). The detection can be performed as follows:

with a flux leakage probe
by the ferromagnetic particles in the magnetic powder suspension.
These are attracted by the flux leakage and congregate above the material defect.


HELLING offers various aerosol detection media (fluorescent or coloured) in the form of

  • Dry powder
  • Liquid water-based concentrate
  • Ready-to-use oil-based suspension

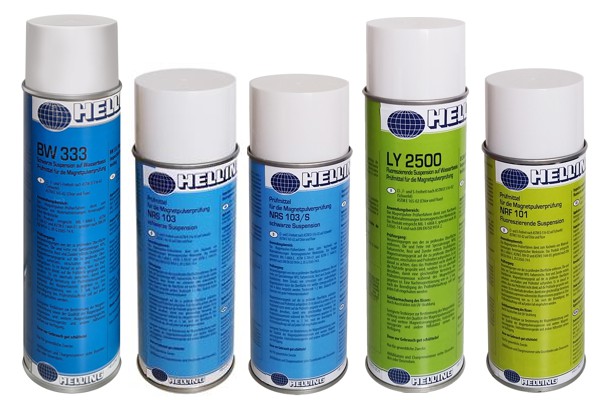

MT detection media for magnetic particle testing (aerosols) - fluorescent or coloured suspensions based on water or oil

White background colour to improve contrast and cleaner for pre- and final cleaning

HELLING develops test facilities like

  • Hand yoke magnets
  • Cross yokes
  • Permanent magnets

to generate the magnetic field. These are manufactured at HELLING and can thus be optimally adapted to the customer's test conditions.

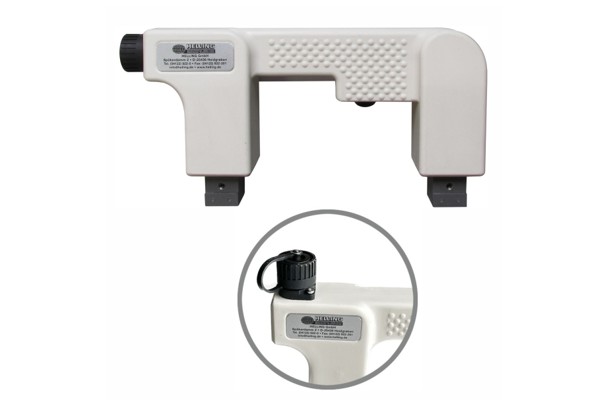

Hand-held yoke magnet for magnetisation, e.g. for non-destructive testing of a weld seam with magnetic particle testing

Test bodies and reference blocks according to international standards enable the detection media to be checked in accordance with the standards.

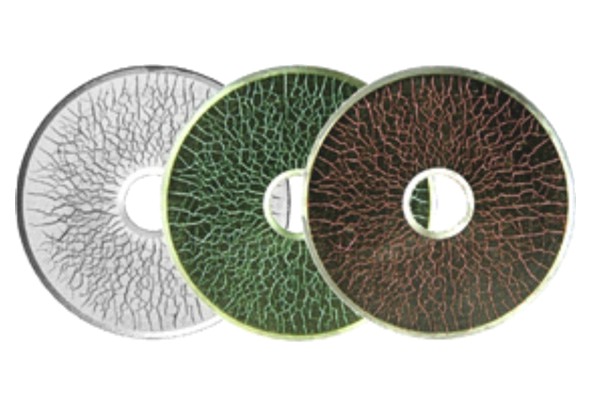

Reference blocks for magnetic particle testing to check the indication sensitivity of the detection media (magnetic particle suspension)

Furthermore, HELLING manufactures fully equipped testing systems for magnetic particle testing according to customer-specific requirements. This includes for example

  • Crack testing benches of different sizes
  • Railway wheelset testing facilities
  • Test tables for testing cylindrical, rectangular or irregularly shaped test specimens
  • Test benches for serial testing
  • Test benches for training purposes

Wheelset testing system ROD-A-MAT for combined testing of wheelset axle and wheelset wheels with fluorescent magnetic particle testing

Aerosol detection media

Showing 1 - 6 out of 6

Page 1 out of 1

BW 333

Water-based magnetic particle suspension

  • Black
  • Average grain size of the magnetic particles approx. 4 µm
  • High sensitivity
  • Contains wetting agent, defoamer and corrosion protection agent
Clear
135.005.601
Magnetpulver NRF 101

Oil-based magnetic particle suspension

  • Yellow-green fluorescent
  • Average grain size of the magnetic particles approx. 4 µm
  • Very high sensitivity
  • Very high flash point
  • Odour-neutral
  • Good corrosion protection properties
  • Application at -10°C to +50°C
Clear
135.005.050
Magnetpulver NRS 103

Oil-based magnetic particle suspension

  • Black
  • Average grain size of the magnetic particles approx. 4 µm
  • Very high sensitivity
  • Odour-neutral
  • Very high flash point
  • Good corrosion protection
  • Application at -10°C to +50°C
Clear
135.005.070
Magnetpulver NRS 103 S

Oil-based magnetic particle suspension

  • Black
  • Average grain size of the magnetic particles approx. 4 µm
  • Very high sensitivity
  • Odour-neutral
  • Good corrosion protection
Clear
135.005.071
LY 2500 fluoreszierende Suspension

Water-based magnetic particle suspension

  • Yellow-green fluorescent
  • Average grain size of the magnetic particles approx. 4 µm
  • Very high sensitivity
  • Contains wetting agent, defoamer and corrosion protection agent
Clear
135.005.611
Magnetpulver-Trocken-Spray fluoreszierend
Fluorescent magnetic powder without carrier liquid (dry spray)
  • Yellow-green fluorescent
  • Average grain size of the magnetic particles approx. 4 µm
  • for testing hot test object surfaces, e.g. weld seams
  • Applicable in temperature range from
    -10 °C to +230 °C
Clear
135.005.065

Coloured detection media

Showing 1 - 6 out of 6

Page 1 out of 1

Super Magna BW 333
Delivery as
  • Pure magnetic powder
  • Liquid water-based concentrate
  • Dry concentrate
  • Ready-to-use oil-based suspension
Clear
135.002.010
Super Magna MEF-515 rot

Delivery as

  • Pure magnetic powder
  • Liquid water-based concentrate
  • Dry concentrate
  • Ready-to-use oil-based suspension
Clear
135.001.011
Super Magna TGL-11

Delivery as

  • Pure magnetic powder
  • Dry concentrate
Clear
135.001.510
Super Magna TGL-12

Delivery as

  • Pure magnetic powder
  • Dry concentrate
Clear
135.001.520
Super Magna WD-105

Delivery as

  • Pure magnetic powder
  • Dry concentrate
Clear
135.001.530
Super Magna WW 50

Delivery as

  • Pure magnetic powder
  • Dry concentrate
Clear
135.003.030

Fluorescent detection media

Showing 1 - 4 out of 4

Page 1 out of 1

Super Magna LY 1500

Delivery as

  • Pure magnetic powder
  • Liquid water-based concentrate
  • Dry concentrate
  • Ready-to-use oil-based suspension
Clear
135.001.010
Super Magna LY 2300

Delivery as

  • Pure magnetic powder
  • Dry concentrate 1 : 100
  • Liquid water-based concentrate
  • Ready-to-use oil-based suspension
Clear
135.001.150
Super Magna LY 2500

Delivery as

  • Pure magnetic powder
  • Liquid water-based concentrate
  • Dry concentrate
  • Ready-to-use oil-based suspension
  • Ready-to-use oil-based suspension for high temperatures
Clear
135.001.040
Super Magna CGY 4000

Delivery as

  • Pure magnetic powder
  • Liquid water-based concentrate
  • Dry concentrate
  • Ready-to-use oil-based suspension
Clear
135.001.180

Background colour

Showing 1 - 2 out of 2

Page 1 out of 1

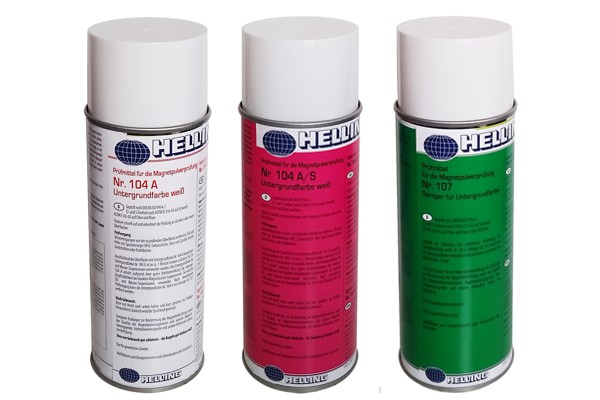

Untergrundfarbe weiß Nr. 104 A
  • White background colour
  • Without chlorinated hydrocarbon
  • Short drying time
    (approx. 1 min. at 20 °C)
  • Forms very homogeneous smooth background
  • Application of thin layers (max. 30 µm)
Clear
135.006.020
Untergrundfarbe 104 A/S Spray
  • This white background colour can be painted over (no removal of the coating required, please check suitability beforehand)
  • Without chlorinated hydrocarbon
  • Short drying time
    (approx. 2 min. at 20 °C)
  • Forms very homogeneous, smooth background
  • Application of thin layers
    (max. 30 µm)
Clear
135.006.021

Cleaner

Showing 1 - 2 out of 2

Page 1 out of 1

Remover Nr. 107

Cleaner to remove the white background colour in magnetic particle testing
Clear
135.006.050
Universal-Entfetter

Universal cleaner for cleaning oil and grease contaminated metallic surfaces in surface crack testing.

Also suitable for cleaning disc and drum brakes (automotive industry).
Clear
129.900.070

Test oils and conditioning agents

Showing 1 - 4 out of 4

Page 1 out of 1

Crack detection oil Typ 01500

Test oil for the preparation of suspensions in magnetic particle testing

  • Low viscosity
  • Regreasing
  • Ageing resistant
  • Odour-neutral
  • Colourless
  • Without own fluorescence
Clear
135.007.050
Crack detection oil Typ 4965

Test oil for the preparation of magnetic particle suspensions in magnetic particle testing

  • Low viscosity
  • Ageing resistant
  • Odour-neutral
  • Colourless
  • Without own fluorescence
Clear
135.007.020
Additiv BC 502

Relaxation foam, antifoam agent and temporary corrosion inhibitor

Additiv BC 502 is a compound of

  • polyethylenglycolether
  • sodium palmitate
  • polysiloxane
  • phosphate
  • water
  • amine borate
Clear
135.007.080
Antirust RS 602

Free from

  • nitrates
  • chlorides
  • halogens
Clear
135.008.081

Test bodies and reference blocks

Showing 1 - 15 out of 15

Page 1 out of 1

Reference block 1

according to EN ISO 3452-2 for proof of the indication sensitivity of magnetic powder suspensions


Scope of delivery

  • Reference block 1 without certificate
Clear
134.002.000
Reference block 2

Reference body 2 according to EN ISO 9934-2 for control and monitoring the indication sensitivity of magnetic powder suspensions.


Scope of delivery

Reference block 2 acc. to EN ISO 9934-2 with certificate


OPTIONAL

  • Calibration
Clear
134.002.100
MP Universal 900 reference block

Proof of sensitivity of fluorescent detection media

.

Scope of delivery

  • MP-Universal-900 reference block
  • Certificate
134.002.010
Berthold Penetrameter
Proof of sufficient field strength and magnetisation direction
Clear
134.003.000
Magnetic field test body D 250

Octagonal, approx. 3 mm thick test body according to ASME for the

  • Localisation of magnetic fields
  • Detection of the magnetisation direction

Scope of delivery

  • Magnetic field test body D 250 - without certificate
Clear
134.003.100
Burmah-Castrol

magnetic field indication

Indication by thin, flexible test strips
Clear
134.002.110
Ketos Tool Steel Ring

Proof of sensitivity of detection media systems (dry, wet, fluorescent and non-fluorescent) when using the magnetisation technique with a central conductor.
Clear
134.004.000
Miniature QQI-Model KSC4-230

Quantitative Quality Indicator QQI


Magnetic field indicator with artificial defects according to

  • SAE AS5371
  • ASTM E1444/1444M-21
  • ASME V Art. 7-764.1.2
134.002.403
Standard QQI-Model KSC-230

Quantitative Quality Indicator QQI


Magnetic field indicator with artificial defects according to

  • SAE AS5371
  • ASTM E1444/1444M-21
  • ASME V Art. 7-764.1.2
134.002.401
Variable depth QQI-Model KSCT-234

Quantitative Quality Indicator QQI


Magnetic field indicator with artificial defects according to

  • SAE AS5371
  • ASTM E1444/1444M-21
  • ASME V Art. 7-764.1.2
134.002.402
Standard QQI-Model KSC-430

Quantitative Quality Indicator QQI


Standard magnetic field indicator with artificial defects according to

  • SAE AS5371
  • ASTM E1444/1444M-21
  • ASME V Art. 7-764.1.2
134.002.404
QQI-Model KSC-4-234

Quantitative Quality Indicator QQI


Magnetic field indicator with artificial defects according to

  • SAE AS5371
  • ASTM E1444/1444M-21
  • ASME V Art. 7-764.1.2
134.002.405
Magnetic weight lift test bar TB-2

Test bodies for controlling and calibrating the lifting force of AC, DC and permanent magnets.

The test body complies with EN ISO 9934-3.


Scope of delivery

  • Lifting force test body TB-2
  • Certificate
134.002.030
Magnetic weight lift test bar TB-10

Test bodies for controlling and calibrating the lifting force of AC, DC and permanent magnets:


Scope of delivery

  • Magnetic weight lift test bar TB-10
  • Certificate
134.002.017
Magnetic Weight Lift Test Bar TB-10-SP

Control and calibration of the lifting force of AC yoke magnets.


Scope of delivery

  • Magnetic Weight Lift Test Bar TB-10-SP
  • Certificate
134.002.018

Test kit and accessories

Showing 1 - 2 out of 2

Page 1 out of 1

HELLING MT test kit

TThe test case can also be customised according to customer requirements.

The standard equipment of the test kit includes
131.500.100
Centrifugal tube

according to ASTM E709-08


Determination of the magnetic particle concentration in magnetic particle suspensions.
Clear
134.005.002

Hand yoke magnets

Showing 1 - 10 out of 10

Page 1 out of 1

Battery pack POWER CASE

for AC hand yoke magnets


Scope of delivery

  • Battery pack Power Case
  • Charger
  • Power adapter
Clear
131.002.168
UM 8 / HANSA-230
Clear
131.002.020
UM 8 / HANSA-42

Necessary accessories:

Safety transformer
230/42 V
Clear
131.002.030
UM 9 / HANSA-230

Hand yoke magnet

OPTIONAL

  • Cable exit on top
Clear
131.002.024
UM 9 / HANSA-42

Necessary accessories:

Safety transformer
230/42 V


OPTIONAL

  • Cable exit on top
Clear
131.002.025
UM 10 / HANSA-230

Hand yoke magnet


OPTIONAL

  • Cable exit on top
Clear
131.002.026
UM 10 / HANSA-42

Necessary accessories:

Safety transformer
230/42 V


OPTIONAL

  • Cable exit on top
Clear
131.002.027
UM 15 / HANSA-230
Clear
131.002.028
UM 15 / HANSA-42

Hand yoke magnet


Necessary accessories:

Safety transformer
230/42 V
Clear
131.002.029
Safety transformer

Mobile safety transformer for hand yoke magnets acc. to:

  • VDE 0570
  • EN 61558
Clear
131.009.050

Accessories for hand yoke magnets

Showing 1 - 8 out of 8

Page 1 out of 1

Protective and flexible poles

Completer case


Content

Each case contains 1 set = 2 pieces of each of the listed protective and flexible poles.

  • Flexible pole 45°
  • Flexible pole 76°
  • Protective pole with pin
  • Protective pole for screwing on
  • Rubber protection cap
  • Movable flexible pole special
Clear
131.500.124
Flexible pole 45° - movable

Flexible pole with 45° foot and pin for hand yoke magnet UM 8, 9 and 10 of the HANSA-230 series.

The lower leg of the pole can be swivelled inwards or outwards by 45°. This either shortens or lengthens the distance between the two poles.

Scope of delivery

  • 1 set = 2 pieces
131.002.023
Flexible pole 76° - movable

Flexible pole with 76° foot with pin for the hand yoke magnet UM 8, 9 and 10 of the HANSA-230 series.

Optimised for the inspection of fillet welds.

Scope of delivery

  • 1 set = 2 pieces
131.002.019
Attachment pole special - movable

Flexible poles for UM-9 and UM-10 / HANSA-230. Version with double joint and straight feet.

Scope of delivery

  • 1 set = 2 pieces
131.002.602
Protective pole with pin

Protective poles with pin for hand yoke magnet UM 8, 9 and 10 of the series HANSA-230.

The protective pole is attached via a central pin to protect the pole of the hand yoke magnet when using on rough test object surface.

Scope of delivery

  • 1 set = 2 pieces
132.020.021
Protective pole for screwing on

Screw-on protective pole. Fastening with 4 side screws


Scope of delivery

  • 1 set = 2 pieces
131.002.021
White light light frame

Inductive white light aluminum light frame. Version with 2 LED.
131.002.077
UV light frame
  • Very robust inductive UV light frame made of aluminum with 2 UV LED
  • Power supply is contactless by induction
131.002.076

Permanent magnets

Showing 1 - 4 out of 4

Page 1 out of 1

Flaw Finder Type A

Permanent Magnet Flaw Finder Type A is particularly suitable for

  • Inspection of small test objects
  • Weld seam testing

Scope of delivery

  • Flaw finder type A
Clear
131.001.010
Flaw Finder Type N

Meets the requirements of

  • ASTM E1444/E1444M-16
  • ASTM E709-15

Scope of delivery

  • Flaw Finder Type N
  • Certificate
131.001.022
UM 9 / HANSA-DC

Battery-operated hand yoke magnet

  • with LED operating display red/green
  • Certificate available
Clear
131.002.127
UM 10 / HANSA-DC

Battery-operated hand yoke magnet

  • with LED operating display red/green
  • Certificate available
Clear
131.002.125

Mobile equipment

Showing 1 - 7 out of 7

Page 1 out of 1

KMU 8/42 mini

Necessary accessories

  • Safety transformer
    3 x 400 / 2 x 42 V AC, IP23
Clear
131.016.101
KMU 8/42

Necessary accessories

  • Safety transformer
    3 x 400 / 2 x 42 V AC, IP23
Clear
131.016.100
NR 01

Cross yoke magnet

Necessary accessories:

  • Control unit
  • Foot switch
  • Holding system
Clear
131.011.120
KR 650®

Cross coil

OPTIONAL

  • Darkening cabin
  • UV LED illumination
  • PLC control
Clear
139.901.100
Demagnetisation tunnel HETT

Demagnetisation by alternating current coils
Clear
132.002.010
Chain testing facility

Testing of sling chains according to

  • German UVV 18.5 regulation
  • DIN 685-5
Clear
HellChain 3000

Chain testing facility

Mobile testing unit for testing sling chains according to:

  • German UVV 18.5 regulation
  • DIN 685-5
131.020.005

High current generator / accessories

Showing 1 - 10 out of 10

Page 1 out of 1

HELLMAG series

High current generators of HELLMAG series for magnetisation by current and field flooding.
Clear
131.100.082
HELLMAG K-Series

HELLMAG K-series high current generators are mobile generators used for magnetisation by current or field flooding, pulse magnetisation and demagnetisation.


OPTIONAL

  • High current generator HELLMAG 7k in mobile version
  • Separate control unit

Other versions on request by E-Mail
Clear
131.100.094
High current cable

For HELLMAG high current generator


Scope of delivery

1 set = 2 connection cables
131.030.090
High current cable

For connection to high current generator and accessories

Scope of delivery

1 set = 2 connection cables
Clear
131.030.096
Foot switch

Foot switch for the HELLMAG high current generators
131.020.090
Haftmagnet mit Griff
  • Magnetic clamp with handle for connection to HELLMAG high current generators
  • Contact area 120 mm x 50 mm
  • Special high current cables required
131.020.139
Magnetic poles

Cable lug connection

Scope of delivery

1 set = 2 pieces magnetic poles
131.020.073
DIX PZ 95

Pole clamp for connection to the high current generator HELLMAG 3300 Premium


Scope of delivery

  • Pole clamp
Clear
132.001.153
Melting electrodes

Melting electrodes for mounting on

for testing that is gentle on the surface


Scope of delivery

  • Melting electrodes
Clear
131.020.081
Copper overlays
  • Protection of the surface of test parts
  • Good current transfer in the contact areas without overheating and burn-in
  • Various sizes and designs available
  • Special designs according to customer requirements possible
100.000.001

Magnetisation coils

Showing 1 - 4 out of 4

Page 1 out of 1

Magnetising coil closed

For connection to a high current generator type HELLMAG via high current cable.

OPTIONAL

  • 4 turns instead of 3 turns
Clear
131.020.011
Magnetisation coil hinged

Hinged magnetising coil for connection to a HELLMAG high current generator via high current cable.


OPTIONAL

  • 4 windings instead of 3 windings
Clear
131.020.021
Trapezoidal coil

The trapezoidal magnetisation coil for connection to the HELLMAG high current generator is used for magnetisation of railroad wheels.


Scope of delivery

Trapezoidal coil with 5 windings
Clear
131.020.103
Half coil

Half coil (segment coil) for connection to ahigh current generator for magnetisation of shafts.


  • Wave diameter 200 mm - 250 mm
  • Ideal for use in narrow gaps, e.g. between wheel and brake disc
Clear
131.020.103

MT test facilities

Showing 1 - 6 out of 6

Page 1 out of 1

Prüftisch 051-100

The 051-100 test table is designed for testing the following test objects

  • cylindrical
  • rectangular
  • irregularly shaped
139.900.051
HELLMAG Universal crack detection bench

The crack detection bench are designed for small series testing as well as for practical testing in the training area.
Clear
139.900.330
HELLMAG Vario 2500 AC

HELLMAG type Vario 2500 crack detection bench is used for combined MT testing of wheelset shafts for longitudinal and transverse defects.
139.900.000
ZER-O-MAT® magnetisation system
100.000.999
ROD-A-FLUX wheelset testing facility

HELLING wheelset inspection system is designed for detecting surface defects and defects near the surface determined in the longitudinal and transverse directions on railroad wheels by means of magnetic particle testing
131.050.030
ROD-A-MAT

ROD-A-MAT MT wheelset testing system for combined magnetic particle testing of wheelset axle and wheelset wheels
131.050.045
